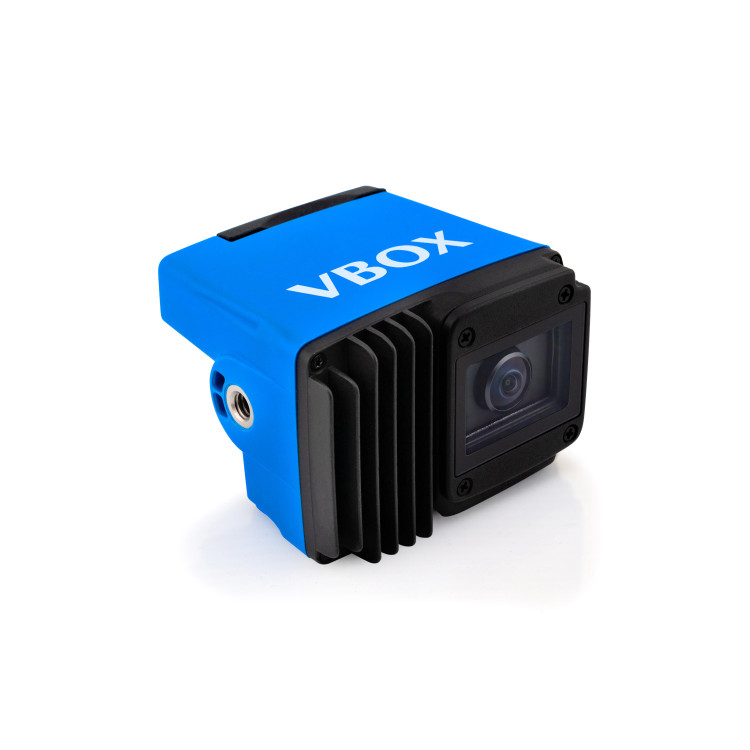

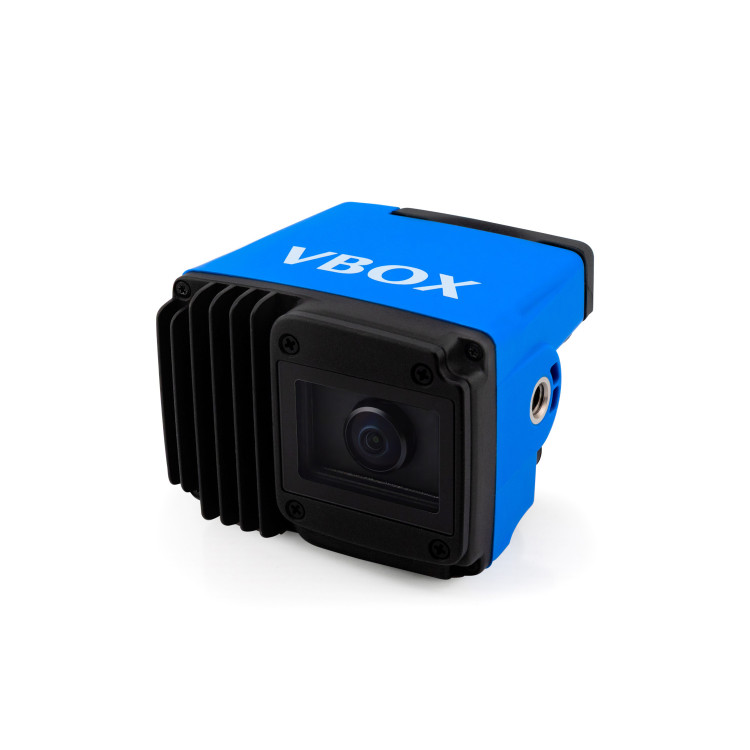

VBOX Video HD1 is the accessible video data logging system designed for drivers looking to improve lap times and build real consistency behind the wheel. This compact, plug-and-play camera and data logger is ideal for track day enthusiasts and competitive racers alike, offering a range of high-tech features in a unit the size of an action camera.

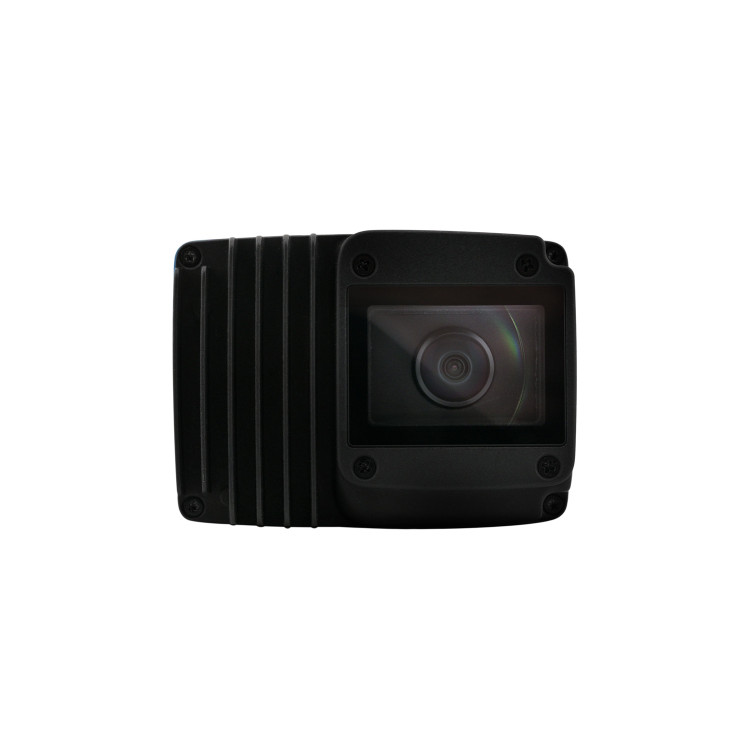

• 1080p HD Video: A single wide-angle camera with three selectable fields of view — Narrow, Normal and Wide — captures every moment of track action in sharp detail. H.265 (HEVC) encoding with dynamic bit rate keeps file sizes efficient without sacrificing quality, recording directly to an SD card.
• CAN Data Logging: HD1 logs CAN messages across two isolated CAN buses, supporting both CAN 2.0 and CAN FD, so it’s compatible with a wide range of dashes and ECUs — capture throttle angle, RPM, brake pressure and more.

• HDMI Output: Stream real-time video, audio and overlay graphics to any HDMI-compatible monitor, recorder, or streaming device. This feature is perfect for broadcasting live motorsport events on TV or social media and provides instant feedback for race teams.

• Set Up From Your Phone: Use the accompanying VBOX Video app on Android or iOS devices for precise tuning of camera orientation, field of view, and live camera preview, all from the driver’s seat.

• Customisable Graphics: Real-time, high-definition graphics overlays offer extensive customization options for dashboard and gauge layouts. Several default scenes are available, but you can also create your own to suit your specific needs.

• Auto-Track Map: The internal 25 Hz multi-constellation GNSS receiver recognizes the racetrack you are driving and automatically configures the track map and lap timing.

• No data loss: Speed-triggered automatic recording, a configurable pre-record buffer of up to 30 seconds, and vehicle power ensure that you capture absolutely all the race action.

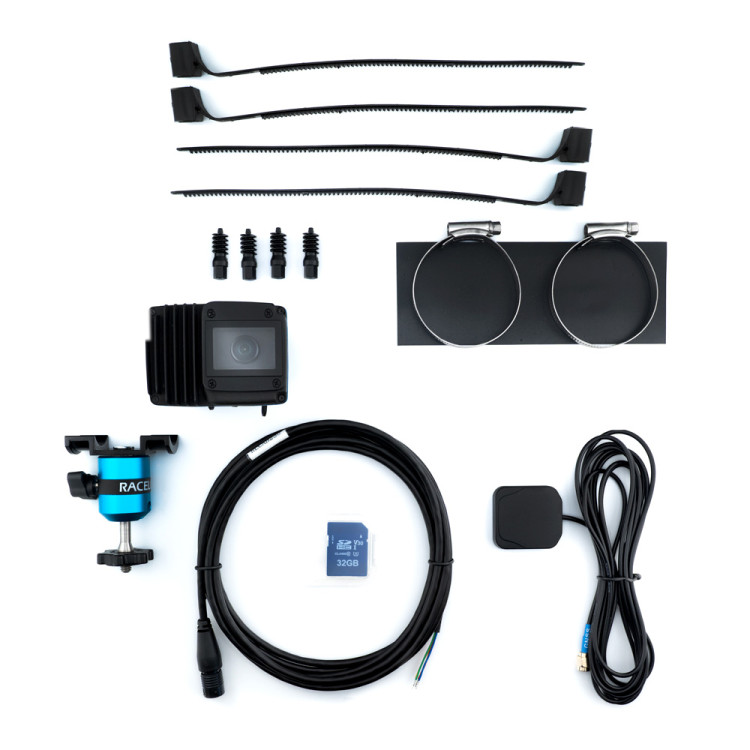

Package Contents

You can choose between three package options.

Option 1 (RLVBHD1)

• HD1 unit
• Unterminated in-car power & CAN cable
• GNSS Antenna
• 32 GB SD card

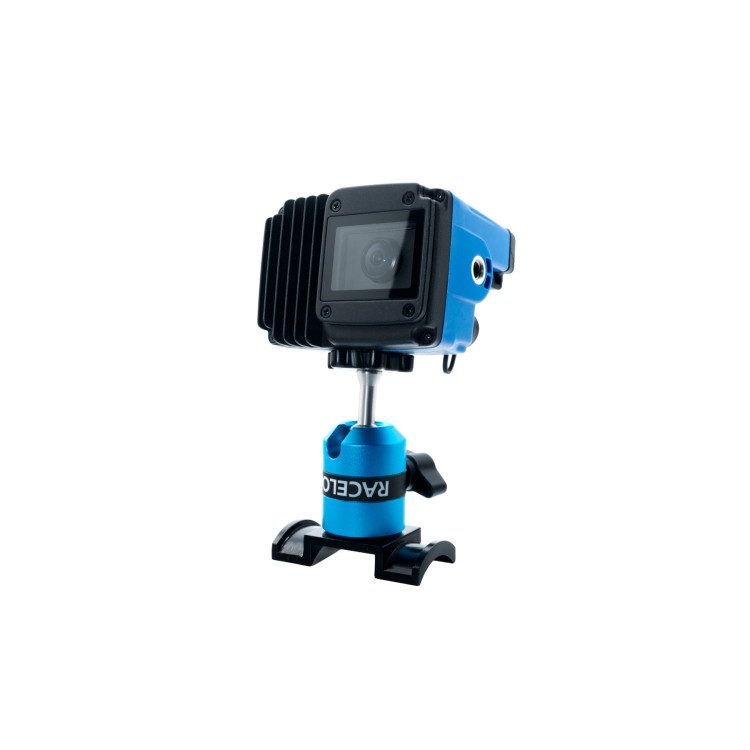

• Roll cage mount

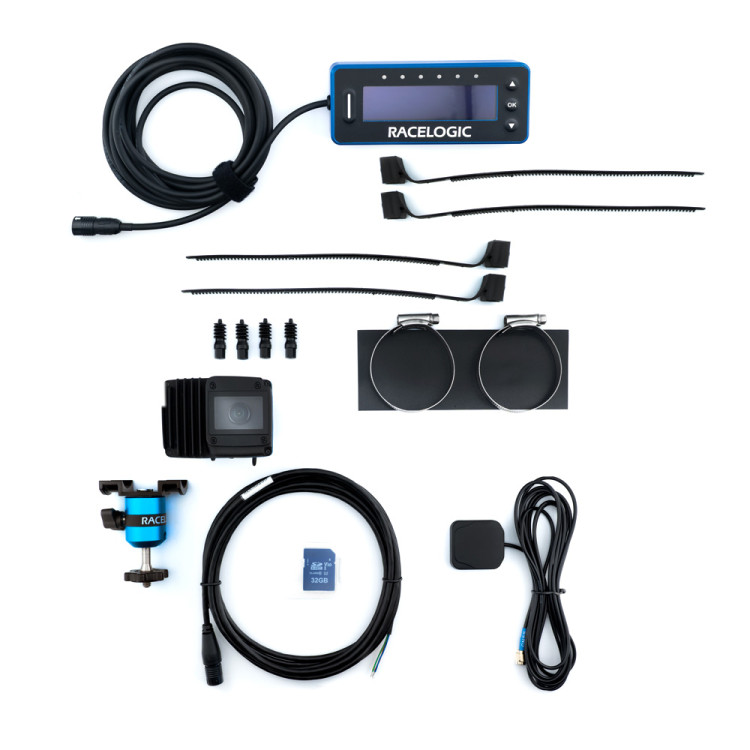

Option 2 (RLVBHD1/D)

• Contents of Option 1
• OLED Display plus mount

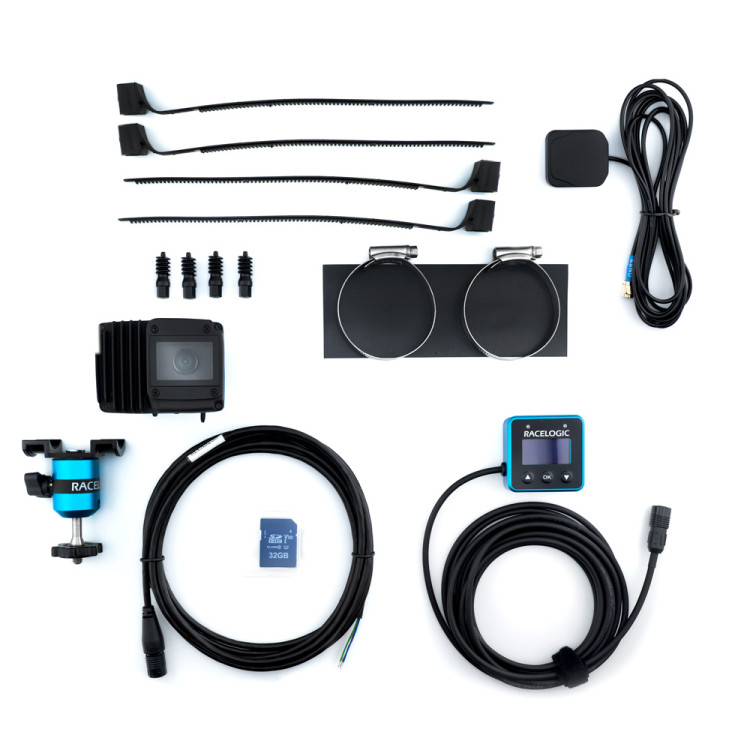

Option 3 (RLVBHD1/DM)

• Contents of Option 1
• Mini OLED Display plus mount
